Solar Heat Pump Performance Data For January '18
|
Share this page with your friends:
|
|
Week 1: January 1st - 7th, 2018
Note: system power use was not logged for this week due to software issues. The charge controller experienced over-voltage issues as well, due to a higher operating efficiency from the array during the extreme cold, so there were periods when the over-voltage protection feature in the controller cut power from the panels as a safety precaution. I also managed to lose the temperature data for January 6th & 7th while exporting it from the logger (sorry). All issues should be resolved by the end of week 2.
System Temperature Data
Click to enlarge
|
PV Power Generation Data
Click to enlarge
| ||||
Week 2: January 8th - 14th, 2018
Note: over-voltage fault and logging issues have been resolved. Some data has been lost due to software malfunctions and still working out some bugs, but the loggers did alright for the most part this week.

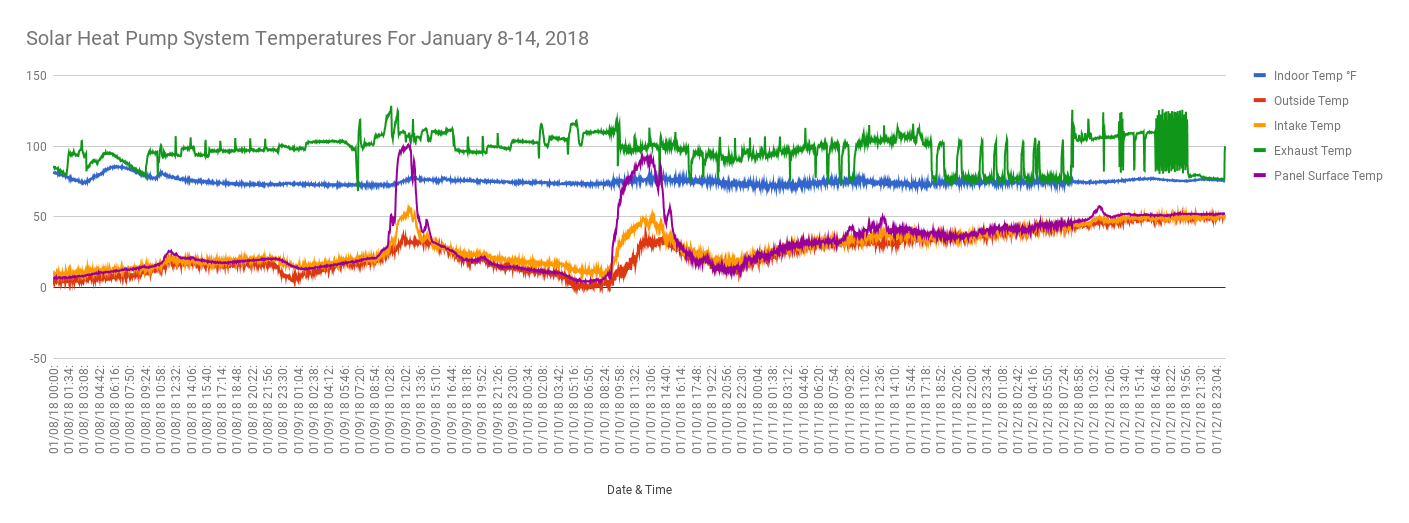

System Temperature Data
|
PV Power Generation Data
|

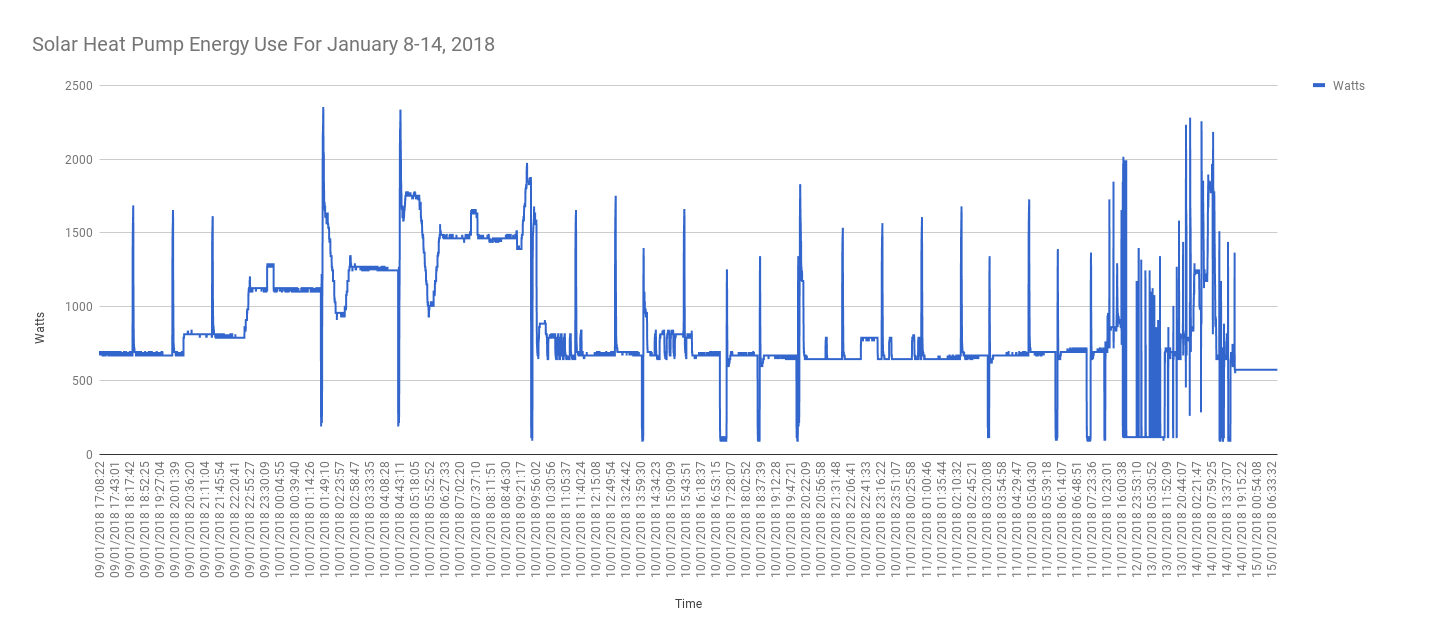

Heat Pump Energy Use Data
| ||||||
Week 3: January 15th - 21st, 2018

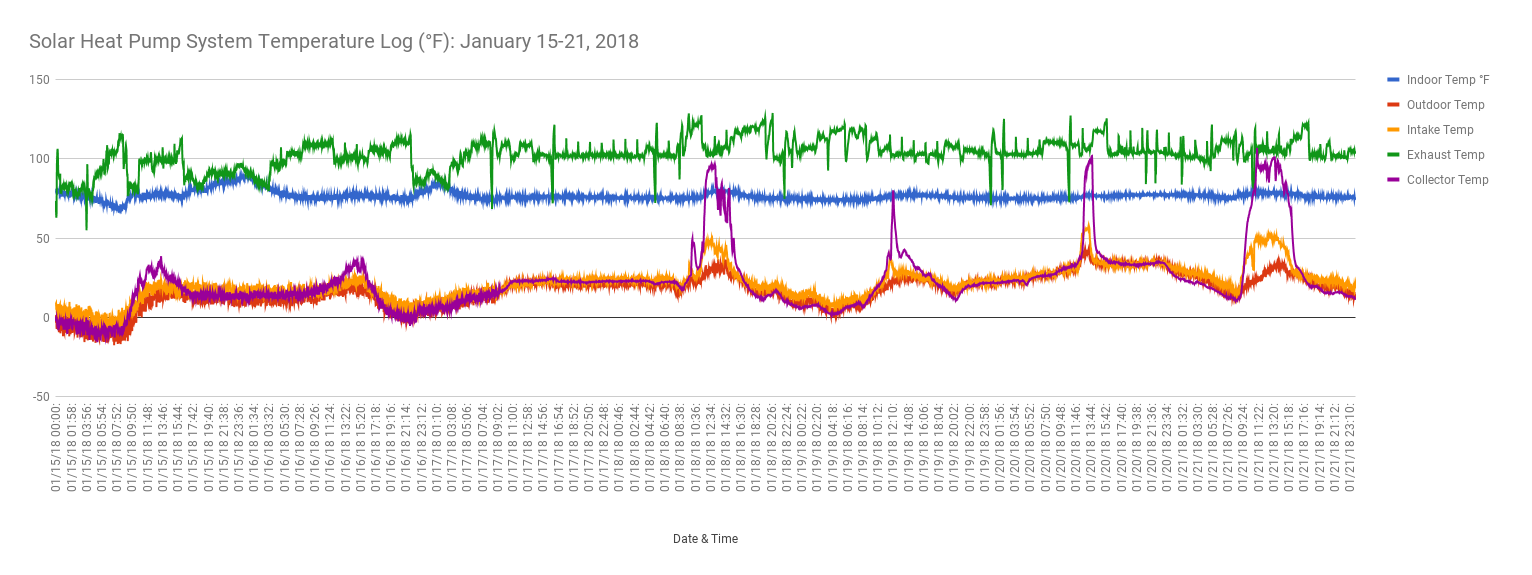

System Temperature Data
|
PV Power Generation Data
|

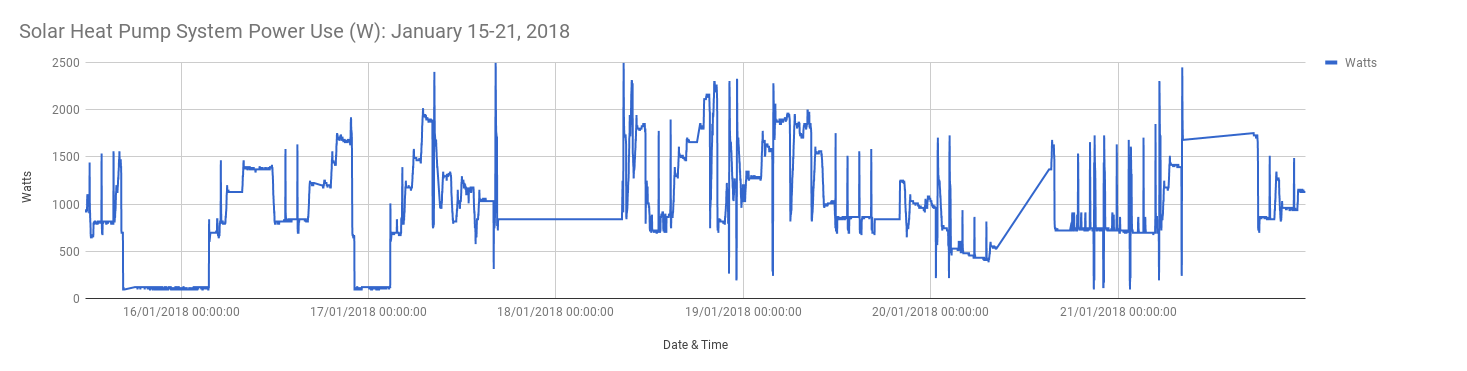

Heat Pump Energy Use Data
| ||||||
Week 4: January 22nd - 28th, 2018
System Temperature Data
|

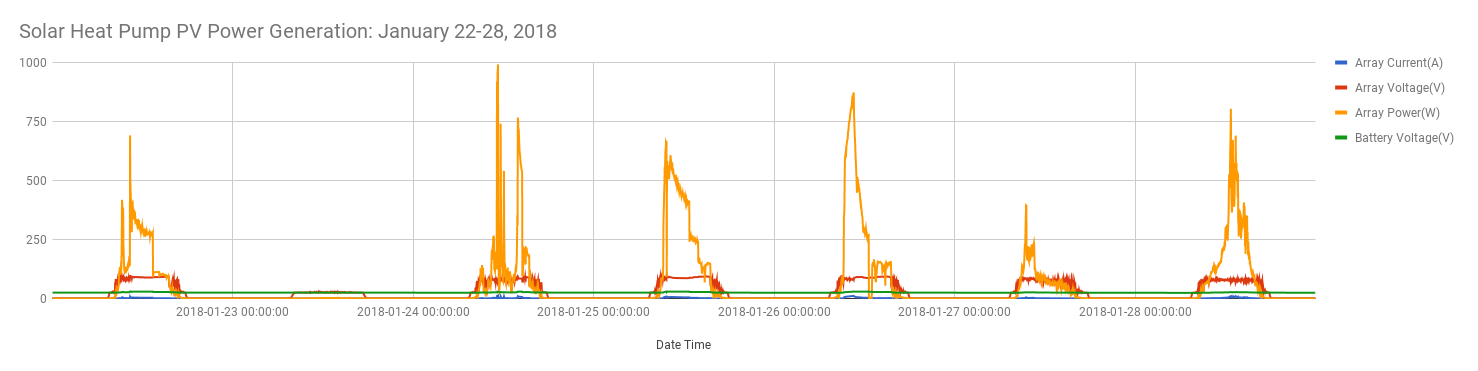

PV Power Generation Data
|

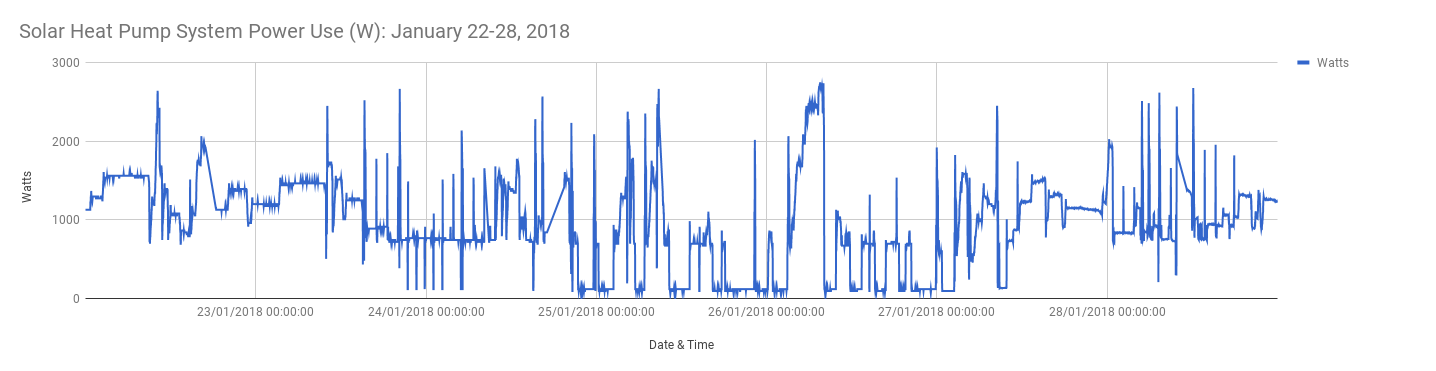

Heat Pump Energy Use Data
| ||||||
Week 5: January 29th - 31st, 2018
System Temperature Data
|

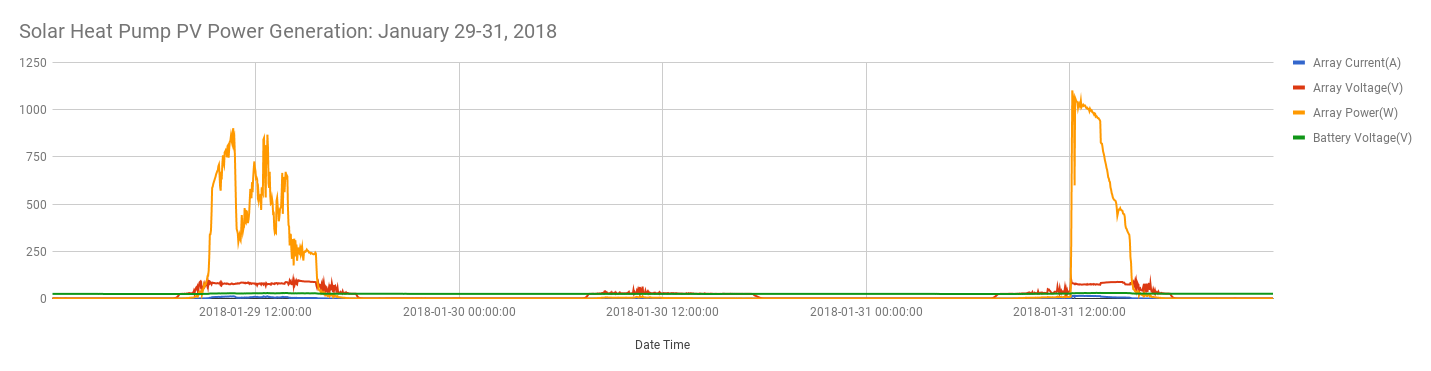

PV Power Generation Data
|
Heat Pump Energy Use Data
| ||||||
